vibration absorber of air conditioning and refrigeration system

Flexible Metal Hose >> Vibration Absorber



Refrigeration Shock Tube
Vibration Absorber

Introduction of Vibration Absorber

Vibration absorbers are designed for installation in the suction and discharge lines of Air conditioning and
Refrigeration system to dampen the transmission of compressor-induced vibration through system piping.
Each unit is constructed of a deep pitch corrugated tubing for increased flexibility and vibration absorption,
covered by a high tensile wire braid for superior strength.Tubing and braid are reinforced by ferrules at each
end and connected to female copper tube ends by a high temperature braze alloy.


Features of Vibration Absorber

· Each unit securely brazed, pressure and vacuum tested, cleaned, dehydrated and sealed in plastic wrap
· Stainless steel corrugated tubing and high tensile wire braid
· Compatible with all HFC, HCFC and CFC refrigerants including R410A refrigerant
· UL approved and CE marked under the Pressure Equipment Directive(PED) 97/23/EC
· Available with Stainless steel tube ends for use with Ammonia NH3

Specification of Vibration Absorber


Model Number

Actual ID
in

Flex tube ID
in (mm)

OD
In (mm)

Max Working Pressure psig (bar)

Burst pressure
psig (bar)

B
in (mm)

HS-1

 1/4

1/4(6.4)

7(177.8)

660(46)

3300(228)

1/2(12.7)

HS-2

 1/4

1/4(6.4)

7-1/2(190.5)

660(46)

3300(228)

1/2(12.7)

HS-3

 3/8

3/8(9.5)

8-1/4(209.6)

620(43)

3100(214)

5/8(15.9)

HS-4

 1/2

3/8(9.5)

9(228.6)

620(43)

3100(214)

3/4(19.0)

HS-5

 5/8

1/2(12.7)

9-3/4(247.7)

620(43)

3100(214)

7/8(22.2)

HS-6

 3/4

1/2(12.7)

10(254.0)

620(43)

3100(214)

1(25.4)

HS-7

 3/4

3/4(19.0)

11-1/4285.8

62043

3100214

1-1/828.6

HS-8

 7/8

3/4(19.0)

11-1/2(292.1)

62043

3100214

1-1/4(31.8)

HS-9

1 1/8

1(25.4)

13(330.2)

540(37)

2700(186)

1-1/2(38.1)

HS-10

1 3/8

1-1/4(31.8)

14-3/4(374.7)

540(37)

2700(186)

1-5/8(41.3)

HS-11

1 5/8

1-1/2(38.1)

17(431.8)

500(35)

2500(172)

2(50.8)


Material of
Vibration Absorber



Description

Corrugated Tube

Wired Braid

Grooved Ferrule

Ferrule

Tube Ends

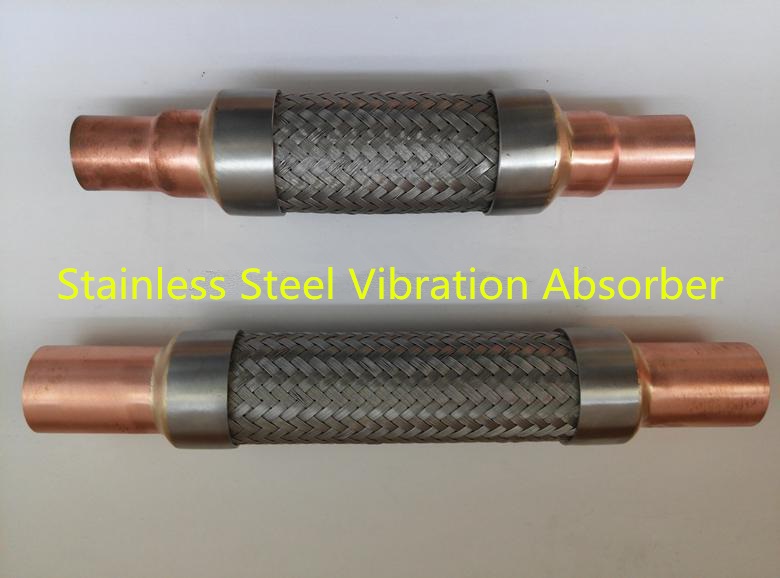

Stainless steel Vibration Absorber

Stainless Steel 304

Stainless Steel 304

Phosphor Bronze

Stainless Steel 304

Copper TP2

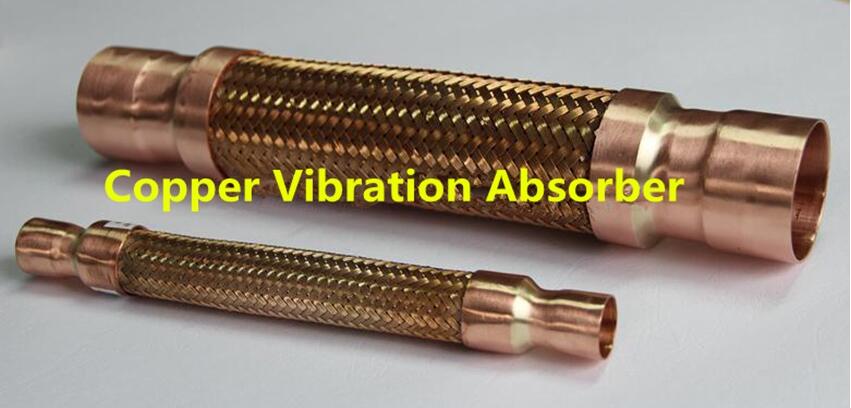

Copper Vibration Absorber

Bronze

Bronze

Phosphor Bronze

Copper TP2

Copper TP2
