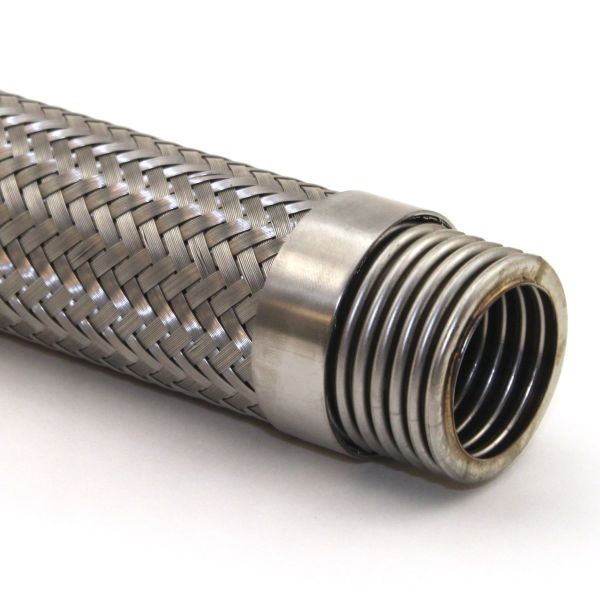

Stainless steel braids added to corrugated metal hoses significantly improve the pressure that the hose can withstand.
High pressure flexible hose are usually single or double braided for higher pressure capabilities. Its corrugated bore can
be T321 in annular construction, while the braided layers use 304. Standard pitch (close pitch) is designed for great flexibility.
High pressure braided hoses are capable of withstanding extraordinarily high temperature and pressure applications,
such as hydraulic systems.
Product description:
- Corrugated hose - T321 or as required
- Braid: 1 or 2 layers, 304 or as required
- Construction: annular
- Working pressure: From full vacuum to 3250 psi (224 bar) depending on size

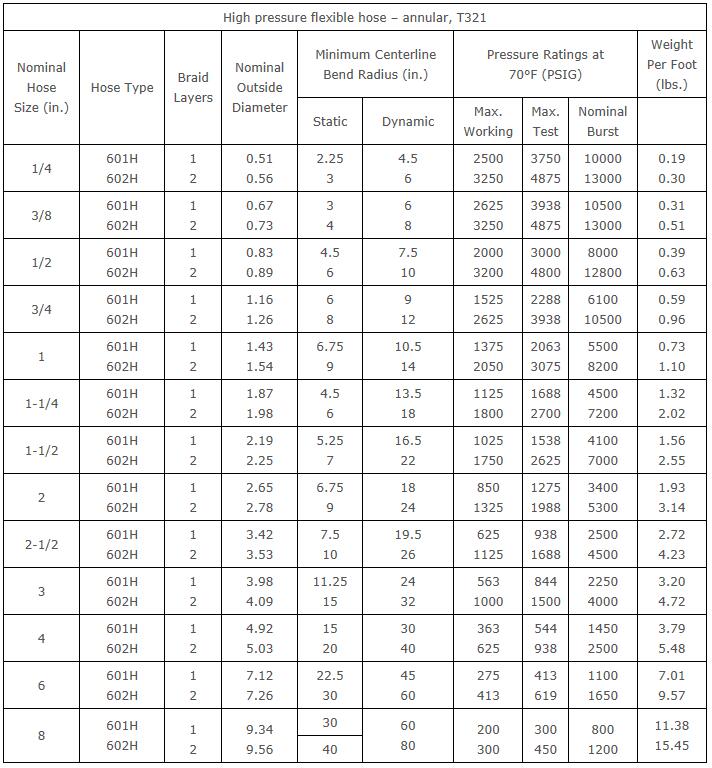

Technique Parameter
none
