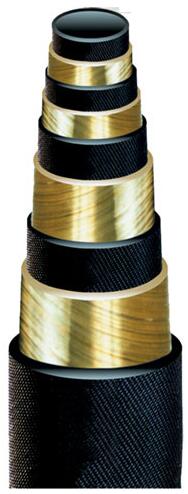

Wire Spiral Hydraulic Hose: DIN EN856 4SP STANDARD
Tube : Oil resistant synthetic rubber
Reinforcement : four high tensile steel wire layers ( 4 W/S )
Cover : abrasion and weather resistant synthetic rubber
Temperature range : -40 ℃ to +100 ℃
|
DN |
Hose I.D |
Wire |
Hose |
Working |
Burst Pressure |
Minimum Bend |
Weight |
Length |
|||
|
inch |
mm |
mm |
mm |
MPa |
psi |
MPa |
psi |
mm |
kg/m |
meters |
|
|
10 |
3/8 |
9.5 |
17.5 |
21.4 |
44.5 |
6450 |
180.0 |
26000 |
180 |
0.78 |
20 to 40 |
|
13 |
1/2 |
12.7 |
20.2 |
24.0 |
41.5 |
6000 |
166.0 |
24000 |
230 |
0.89 |
20 to 40 |
|
16 |
5/8 |
15.9 |
23.8 |
28.2 |
35.0 |
5000 |
140.0 |
20000 |
250 |
1.11 |
20 to 40 |
|
19 |
3/4 |
19.0 |
28.2 |
32.2 |
35.0 |
5000 |
140.0 |
20000 |
300 |
1.59 |
20 to 40 |
|
15 |
1 |
25.4 |
35.5 |
39.7 |
28.0 |
4000 |
112.0 |
16000 |
340 |
2.02 |
20 to 40 |
|
32 |
1 1/4 |
31.8 |
46.0 |
50.8 |
21.0 |
3000 |
84.0 |
12000 |
460 |
3.32 |
20 to 40 |
|
38 |
1 1/2 |
38.1 |
52.4 |
57.7 |
18.5 |
3650 |
74.0 |
10800 |
560 |
3.70 |
20 to 40 |
|
51 |
2 |
50.8 |
65.3 |
69.6 |
18.5 |
2360 |
66.0 |
9600 |
660 |
5.47 |
20 to 40 |
