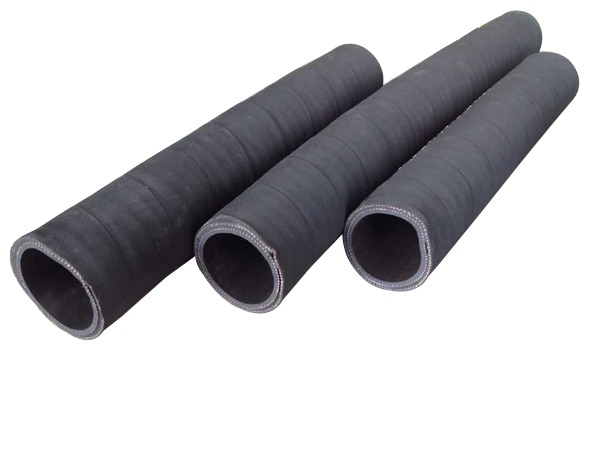

通用吸排水胶管
内胶： 黑色天然橡胶/丁苯橡胶
外胶：黑色天然橡胶/丁苯橡胶
增强层：多层纺织线
温度： -20℉to +180℉（-30℃to +80℃）
安全系数： 3:1
|
内径ID |
外径OD |
工作压力WP |
爆破压力BP |
弯曲半径 |
编织层数 |
重量 |
可生产长度 |
||||
|
mm |
inch |
mm |
inch |
Mpa |
bar |
Mpa |
bar |
mm |
B |
kg/m |
m |
|
10 |
3/8" |
18 |
3/4" |
2.5 |
25 |
7.5 |
75 |
130 |
1 |
0.3 |
20-50 |
|
12.5 |
1/2" |
23 |
7/8" |
2.5 |
25 |
7.5 |
75 |
180 |
1 |
0.46 |
20-50 |
|
16 |
5/8" |
26 |
1" |
2 |
20 |
6 |
60 |
205 |
1 |
0.53 |
20-50 |
|
19 |
3/4" |
29 |
1-1/4" |
2 |
20 |
6 |
60 |
240 |
1 |
0.6 |
20-50 |
|
22 |
7/8" |
32 |
1-1/4" |
1.5 |
15 |
4.5 |
45 |
280 |
1 |
0.8 |
20-50 |
|
25 |
1" |
35 |
1-2/5" |
1.5 |
15 |
4.5 |
45 |
300 |
1 |
0.93 |
20-50 |
|
31.5 |
1-1/4" |
42 |
1-5/8" |
1.5 |
15 |
4.5 |
45 |
420 |
2 |
1.25 |
20-50 |
|
38 |
1-1/2" |
48 |
1-7/8" |
1.2 |
12 |
3.6 |
36 |
500 |
2 |
1.47 |
20-50 |
|
45 |
1-3/4" |
56 |
2-1/4" |
1.2 |
12 |
3.6 |
36 |
600 |
2 |
1.76 |
20-50 |
|
50 |
2" |
64 |
2-1/2" |
1.2 |
12 |
3.6 |
36 |
630 |
2 |
1.92 |
20-50 |
|
57 |
2-1/4" |
70 |
2-4/5" |
1.2 |
12 |
3.6 |
36 |
855 |
2 |
2.1 |
20-50 |
|
63 |
2-1/2" |
78 |
3" |
1 |
10 |
3 |
30 |
960 |
2 |
2.56 |
20-50 |
|
76 |
3" |
90 |
3-1/2" |
1 |
10 |
3 |
30 |
1140 |
2 |
2.96 |
20-50 |
|
90 |
3-1/2" |
104 |
4" |
0.8 |
8 |
2.4 |
24 |
1350 |
2 |
3.7 |
20-50 |
|
100 |
4" |
116 |
4-5/8" |
0.8 |
8 |
2.4 |
24 |
1530 |
2 |
4.22 |
|
