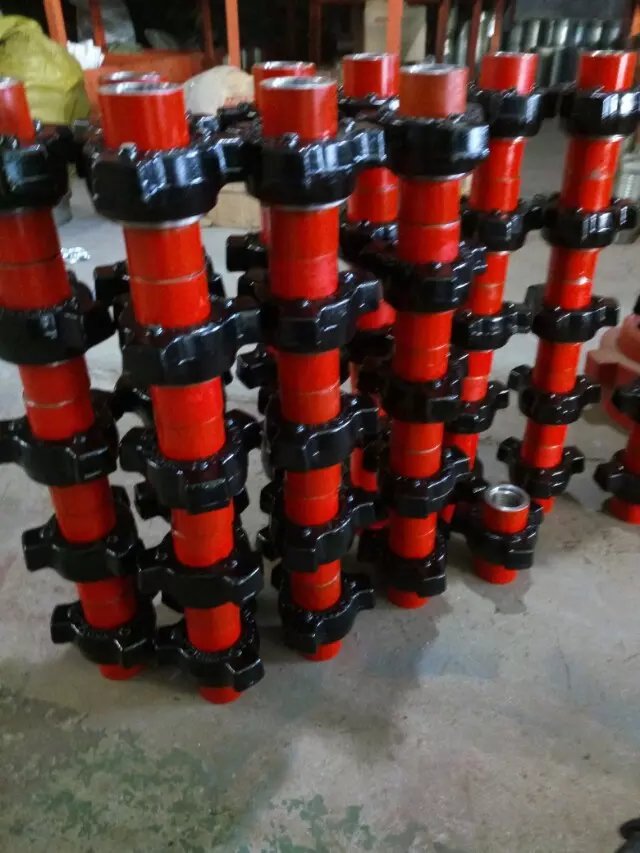

Hammer Union Fig 300 - 3,000 PSI CWP, Forged
Fig 300 sits between Fig 206 and Fig 402 at 3,000 PSI CWP. It is used on medium-pressure manifolds, transfer pumps and pump-in lines - duties where a 2,000 PSI union would run too close to its limit, but the line does not justify a 4,000 PSI figure. Having the intermediate figure in the range lets you step up one level instead of jumping two, and keep the same make-up habit across the line. The body is forged.
Specifications
- Working pressure: 3,000 PSI CWP
- Sizes: 2" to 4" (other sizes on request)
- End connection: threaded (NPT or API line pipe) or butt-weld
- Material: forged carbon steel; NACE MR0175 (sour service) on request
- Seals: Buna-N (NBR) standard; HNBR / PTFE for higher temperature or chemical media
- Service: medium-pressure manifolds, transfer pumps, pump-in and service lines
What to send with an enquiry
Figure number, size, end connection, medium and working pressure, and quantity. Material certificates and batch test reports are provided with the order, and third-party inspection (SGS / BV / TUV) can be arranged before shipment.
Fig 300 is one figure inside our full range from Fig 100 through Fig 1502 (1,000-15,000 PSI CWP). If your line condition sits between two figures, send us the pressure and medium and we will confirm the right figure before production.
